Allgemeine Spezifikationen
| Artikelnummer | M2024SD8W01 |
|---|---|
| Description | Not recommended for new designs. Order due date : 2023/06/30 New Part Num.:MN24SD8W01 New PN Available to Order : 2024/01/15 |

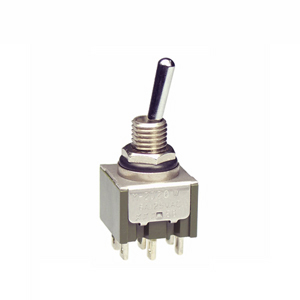

| Name | TOGGLE SWITCHES |
| Serien | M |
| Pole | SP3T |
| Schaltungen | On-On-On |
| Nennstrom | 6A (AC), 4A (DC) |
| Nennwert | 6 | Beleuchtung | Non-Illuminated |
| Befestigungsart | Panel Mount |
| Contact Finish | Silver |
| Rating (AC) | 125V |
| Rating (DC) | 30V |
| Actuator Type | 10.5mm Bat |
| Panel Cutout Dimensions | 6.5Dia. |
| Termination Style | Solder Lug |
| Standards & Approvals | UL |
