Allgemeine Spezifikationen
Artikelnummer |
ISF15ACP4 |
Description |

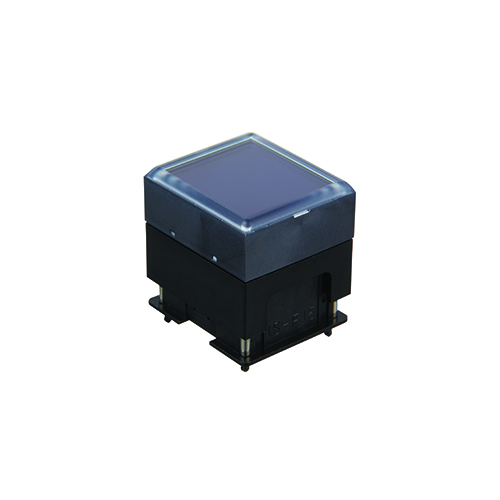

Frameless OLED Pushbutton |
Name |
SmartSwitch |
Serien |
SmartSwitch |
Pole |
SPST |
Schaltungen |
Off-On |
Nennwert |
0.1 |
Beleuchtung |
Illuminated |
Befestigungsart |
Through Hole |
Contact Finish |
Gold Plating |
Contact Rating |
100mA 12V DC |
Actuator Type |
23.13mm L x 20.59mm W |
Panel Cutout Shape |
21.3mm L x 18.7mm W |
Termination Style |
Straight PC Terminals |
SM Type |
Pushbutton, OLED |
Display Mode |
65536 Colors, Passive Matrix |
